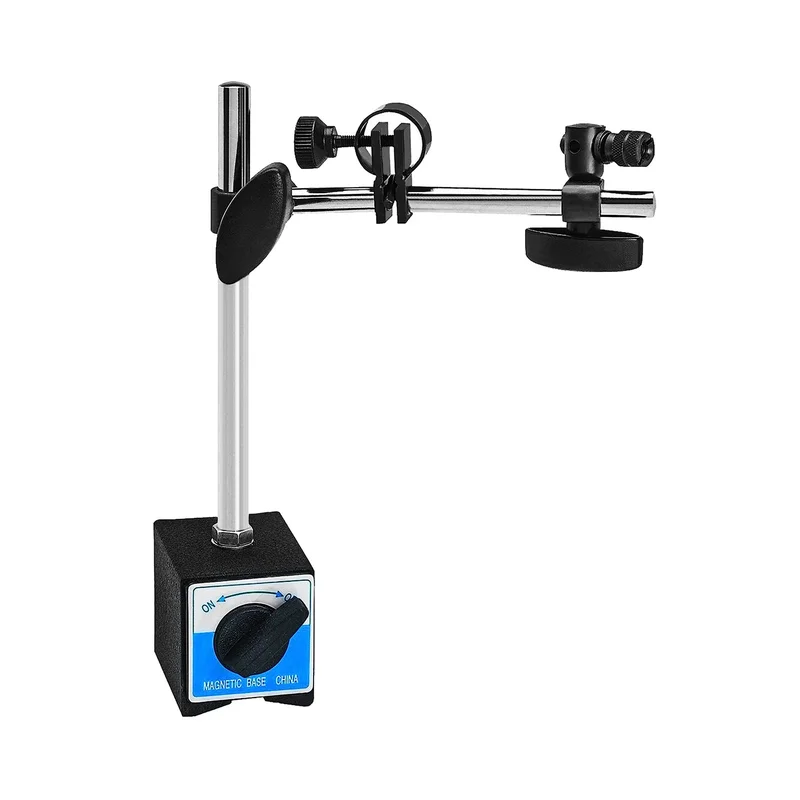

Name: HFS(R) Magnetic Base Stand with Fine Adjustment Adjustable Holder for 3/8" Digital Dial Test Indicator Gauge 132lbs/60kg Max Pull-Fast Shipping
SKU: 18270730
Availability: InStock

HFS(R) Magnetic Base Stand with Fine Adjustment Adjustable Holder for 3/8″ Digital Dial Test Indicator Gauge 132lbs/60kg Max Pull-Fast Shipping

SKU: 18270730 Category: Hardware

Description

[MATERIAL]: The strut is made of steel and the base is cold drawn steel.

[SIZE]: Fixed arm height: 6.9”; Extension arm length: 6.3”; Magnetic Base dimension: 2.36″ L x 1.97″ W x 2.17″ H (60 x 50 x 55mm); Holds 3/8″ stem and lug back; Holding Power: 135lbs

[MAGNETIC BASE]: The magnetic bracket adopts switchable permanent magnet, which is easy to install on the metal surface.V-groove base for easy installation on cylindrical parts.

[UNIVERSAL KNOB]: Flexible, strong and precise rotary joint can adjust the support rod to any direction and fix it firmly.

[APPLICATION]: Used to maintain the position of a dial indicator or test indicator etc. during measurement -loaded fine adjustment on the top arm
