DC Power Supply 13.8V Fixed Output DC Stabilization Communication Switch Power Supply 13.8V 30A Short-wave Station-Fast Shipping

Description

The DC Power Supply 13.8V Fixed Output DC Stabilization Communication Switch Power Supply is an electronic device that is primarily used to provide a constant output voltage. This product operates at 13.8V and can deliver up to 30A of current. It is specifically designed to meet power requirements of short-wave stations.

The stabilization feature of this power supply ensures that it maintains a steady DC output even under conditions of variable input or load disturbances. This offers protection against voltage spikes or fluctuations, making it suitable for sensitive electronic equipment.

Within a communication set-up, this DC power supply typically functions as a switch, controlling the flow of electricity based on the requirements of the connected devices. The defined outputs ensure regulated power supply, thereby enhancing the performance of the equipment.

Although the product operates at a high current capacity, it is designed to prevent overheating. This includes built-in safety features such as short-circuit protection which shuts off the power supply in case of a circuit breakdown, thereby protecting the equipment and users.

Overall, the DC Power Supply 13.8V Fixed Output DC Stabilization Communication Switch Power Supply stands as a reliable component, delivering consistent service for short-wave station operations.

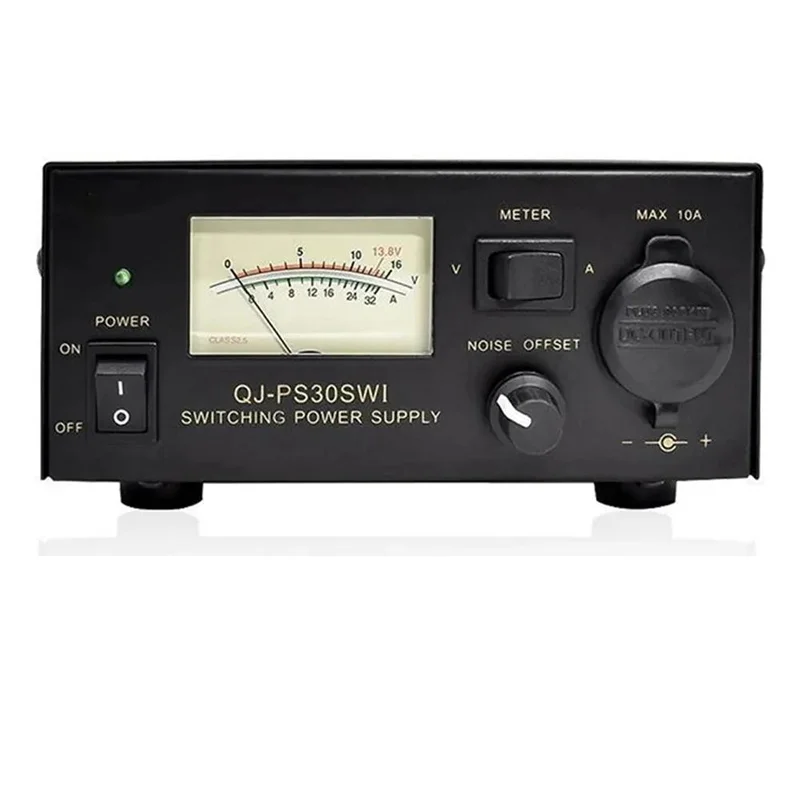

QJ-PS30SWI Power Supply 13.8V 30A Switching Power Supply Short-wave Base Station Running Communication Equipment Power Supply

INTRODUCTION
PS30SWI is a high efficiency,compact,lightweight, high performance switching power is also engineered to minimize the noise
specifically for the when the noise occurs, it can be eliminated by the Noise Offset convenient functions like voltage pre set knob and a highly visible back lit meter are all included in this standard powersupply.

SPECIFICATIONS
1. input vol tage: 220VAC 50Hz
2. output vol tage:13. 8VDC Adjusts voltage. Turn clockwise to inerease and counter clockwise to decrease the voltage. When it
is set at the center position it will supply 13.8 volts
3. output voltage regulation:less than 2%
4. protection: Short- circuit, Automatic current limiting With in 30A
5. output current: 30A (max), 20A (continuous )
6. Ripple: less than 80mVp-p at rated load
7. fuse:220V:5A
8. Meter:single volt/current meter, back-lit
9. Dimensions: 150(W) X 70(H)X 220(L)mm( Pro ject ions not included)
; approx. 1. 5kg

CAUTION
1. Even though the chassis of the unit is negatively grounded, use correct terminals to connect cable.
2. When plugging the unit into a wall outlet, it must be turned off.
3. Place the unit in a dry and well ventilated area.
4. Never touch the unit while it is working. Even though it is designed for high efficiency, the unit will still get hot.
5. A current limiting system will protect the unit from overloading.
6. If a short circuit occurs while outputing, the unit will be protected by
a short circuit protection function. Turn off the unit and repair the cause of the short circuit immediately,
then turn it back on.
7. Do not use the unit for devices that require high current input
at the start, such as motorized equipment. Do not use the unit to charge a car battery.
8. Do not use a car cigarette lighter in the cigarette plug
