Description

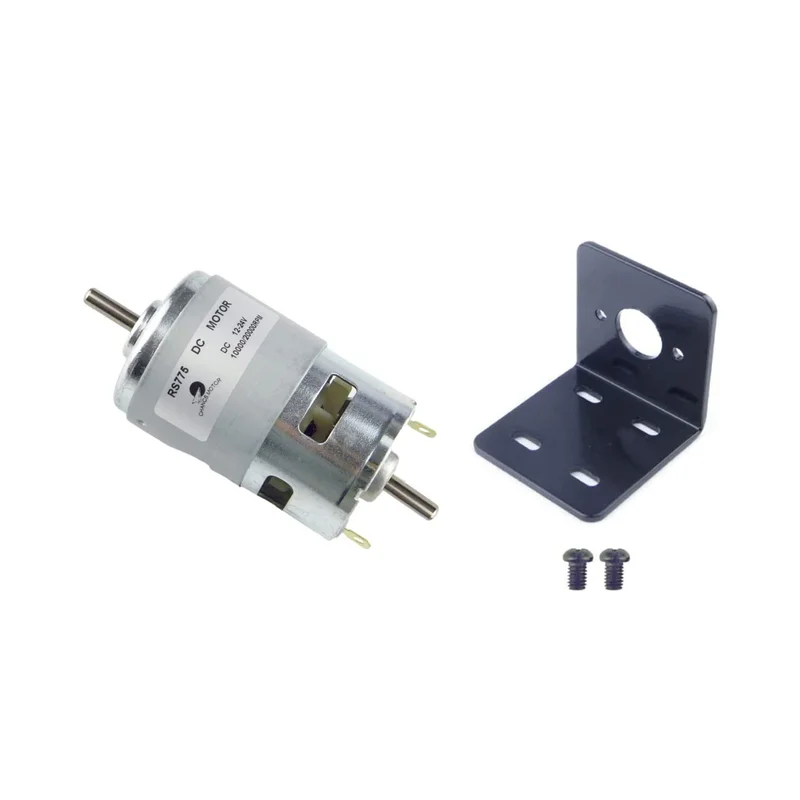

*This is a 775 DC motor with bracket, the mounting brackets are designed to be used as an additional support for your motors or as an alternative mounting option. The motor is with ball bearing, large torque, low noise, built-in cooling fan,durable and long service life.
*The specification of motor:Rated Voltage: DC 12V, Unloaded Speed: 10000RPM, Load Speed: 8800RPM. Rated Voltage: DC 24V, Unloaded Speed: 20000RPM, Load Speed: 17600RPM. Starting current: 4-5A ,Motor Body Diameter: 42mm, Motor Body Length: 66.5mm, Shaft Type: Double Shaft, Shaft Length: 16mm, Shaft Diameter: 5mm.
The specification of bracket: Length: 50mm,Width: 52mm,Height: 53mm, Mounting hole diameter: 4mm, Thickness of bracket: 3mm.
*Application:Suitable for mini cutting machine, sanding machine, lathe tool, milling machine, bench drill, electric hand drill, polishing machine, electric grinder, engraving machine, etc.
*Package: 1PCS x DC Motor, 1PCS x Bracket
